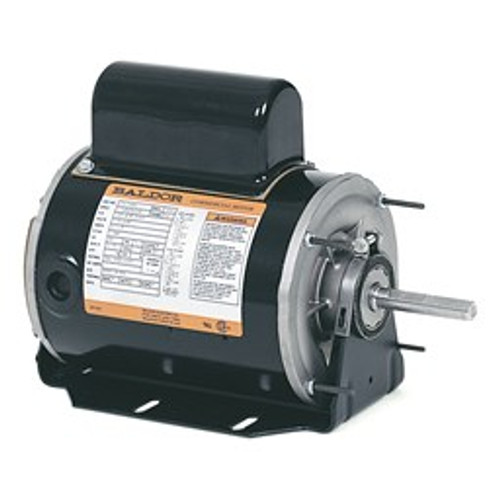

Description
Catalog Number: CHC3526A|Enclosure: TEAO|Frame: 56Z|Frame Material: Steel|Frequency: 60.00 Hz|Output @ Frequency: .500 HP @ 60 HZ|Phase: 1|Synchronous Speed @ Frequency: 900 RPM @ 60 HZ|Voltage @ Frequency: 115.0 V @ 60 HZ 230.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: UR CSA|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: Resilient|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 4.600 A @ 230.0 V 9.200 A @ 115.0 V|Design Code: -|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 50.0 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 4.6 a|Front Face Code: Terminal Panel|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: B|Inverter Code: Not Inverter|KVA Code: F|Lifting Lugs: No Lifting Lugs|Locked Bearing Indicator: No Locked Bearing|Motor Lead Exit: Terminal Panel|Motor Lead Termination: None|Motor Lead Quantity/Wire Size: 6 @ 18 AWG|Motor Type: 3535C|Mounting Arrangement: F1|Number of Poles: 8|Overall Length: 14.42 IN|Power Factor: 68|Product Family: General Purpose|Pulley End Bearing Type: Sealed Bearing|Pulley Face Code: Resilient Mount|Pulley Shaft Indicator: Standard|Rodent Screen: None|Service Factor: 1.00|Shaft Diameter: 0.625 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible: Connected Standard|Shaft Slinger Indicator: No Slinger|Speed: 825 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: Automatic Thermal Overload|Winding Thermal 1 Location: SB|Winding Thermal 2: None|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 1.45 Ohms A Ph / 20.2 Ohms B Ph|Temp. Rise @ Rated Load: 84� C|Temp. Rise @ S.F. Load: |Start Configuration: DOL|Break-Down Torque: 4.9 LB-FT|Pull-Up Torque: 1.3 LB-FT|Locked-Rotor Torque: 1.3 LB-FT|Starting Current: 22 A
