Description

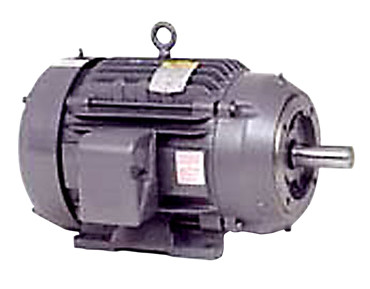

Catalog Number: ECP84316T-4|Enclosure: TEFC|Frame: 365T|Frame Material: Iron|Frequency: 60.00 Hz|Output @ Frequency: 75.000 HP @ 60 HZ|Phase: 3|Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ|Voltage @ Frequency: 460.0 V @ 60 HZ|XP Class and Group: CLI GP A,B,C,D|XP Division: Division II|Agency Approvals: CCSA US UR|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Base Indicator: Rigid|Bearing Grease Type: Polyrex EM (-20F +300F)|Constant Torque Speed Range: 15-60|Current @ Voltage: 85.900 A @ 460.0 V|Design Code: B|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 95.4 %|Enclosure Modification: 841|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 85.9 a|Heater Indicator: No Heater|Insulation Class: F|Inverter Code: Inverter Ready|IP Rating: IP56|KVA Code: G|Lifting Lugs: No Lifting Lugs|Max Speed: 2700 rpm|Motor Lead Quantity/Wire Size: 3 @ 4 AWG|Motor Type: A3670M|Mounting Arrangement: F1|No Load Current: 27.5 a|Number of Poles: 4|Overall Length: 33.49 IN|Power Factor: 86|Pulley End Bearing Type: Ball|Pulley Face Code: Standard|Service Factor: 1.15|Shaft Diameter: 2.374 IN|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Phase Seq-Std Rot (CCWODE)|Shaft Slinger Indicator: No Slinger|Speed: 1780 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|XP Temp Code: T3
