Description

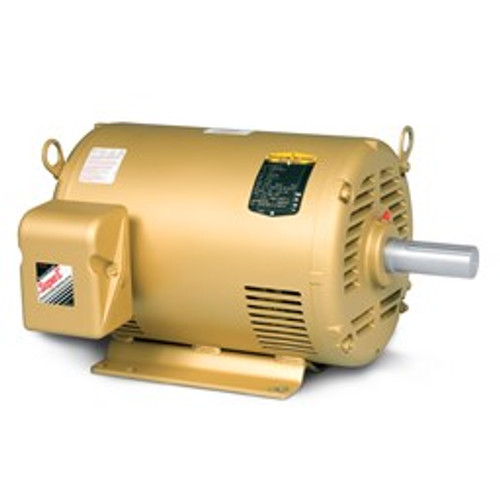

Catalog Number: EM2555T-CI|Enclosure: DP|Frame: 404T|Frame Material: Iron|Frequency: 60.00 Hz|Output @ Frequency: 100.000 HP @ 60 HZ|Phase: 3|Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ|Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: CCSA US CSA EEV|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Base Indicator: Rigid|Bearing Grease Type: Polyrex EM (-20F +300F)|Current @ Voltage: 115.000 A @ 460.0 V 230.000 A @ 230.0 V|Design Code: B|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 95.4 %|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 115.0 a|Heater Indicator: No Heater|Insulation Class: F|Inverter Code: Inverter Ready|KVA Code: G|Lifting Lugs: Standard Lifting Lugs|Motor Lead Quantity/Wire Size: 3 @ 2 AWG|Motor Type: A40052M|Mounting Arrangement: F1|Number of Poles: 4|Overall Length: 34.00 IN|Power Factor: 85|Pulley End Bearing Type: Ball|Pulley Face Code: Standard|Service Factor: 1.15|Shaft Diameter: 2.875 IN|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: No Slinger|Speed: 1785 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None
