Description

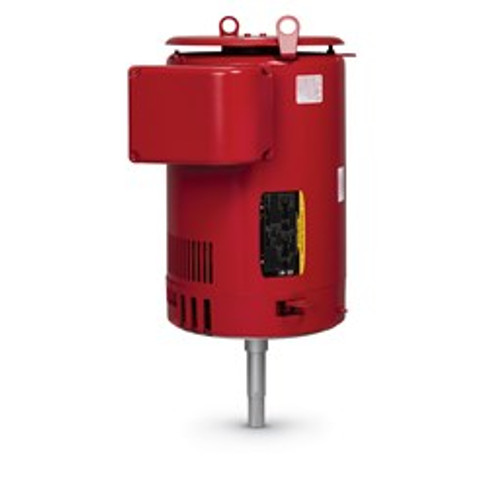

Catalog Number: FPM3314T|Enclosure: OPSB|Frame: 215T|Frame Material: Steel|Frequency: 50.00 Hz 60.00 Hz|Output @ Frequency: 15.000 HP @ 60 HZ 10.000 HP @ 50 HZ|Phase: 3|Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ|Voltage @ Frequency: 230.0 V @ 60 HZ 190.0 V @ 50 HZ 460.0 V @ 60 HZ 380.0 V @ 50 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: UR UL CSA EEV CSA|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: Rigid|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 35.400 A @ 230.0 V 29.000 A @ 190.0 V 17.700 A @ 460.0 V 14.500 A @ 380.0 V|Design Code: B|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 89.5 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 14.5 a|Front Face Code: Standard|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: F|Inverter Code: Not Inverter|KVA Code: G|Lifting Lugs: Standard Lifting Lugs|Locked Bearing Indicator: No Locked Bearing|Motor Lead Exit: Ko Box|Motor Lead Termination: Flying Leads|Motor Lead Quantity/Wire Size: 9 @ 14 AWG|Motor Type: 3734M|Mounting Arrangement: F1|Number of Poles: 2|Overall Length: 16.32 IN|Power Factor: 88|Product Family: General Purpose|Pulley End Bearing Type: Ball|Pulley Face Code: Standard|Pulley Shaft Indicator: Standard|Rodent Screen: None|RoHS Status: ROHS COMPLIANT|Service Factor: 1.15|Shaft Diameter: 1.375 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: No Slinger|Speed: 2910 rpm 3480 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: None|Winding Thermal 2: None|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 0.91103 Ohms A Ph / 0 Ohms B Ph|Temp. Rise @ Rated Load: 55� C|Temp. Rise @ S.F. Load: 71� C|Start Configuration: DOL|Break-Down Torque: 69.5 LB-FT|Pull-Up Torque: 27.6 LB-FT|Locked-Rotor Torque: 32.9 LB-FT|Starting Current: 110 A|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 0.91015 Ohms A Ph / 0 Ohms B Ph|Temp. Rise @ Rated Load: 36� C|Temp. Rise @ S.F. Load: 45� C|Start Configuration: DOL|Break-Down Torque: 62 LB-FT|Pull-Up Torque: 26.9 LB-FT|Locked-Rotor Torque: 32 LB-FT|Starting Current: 104 A
