Description

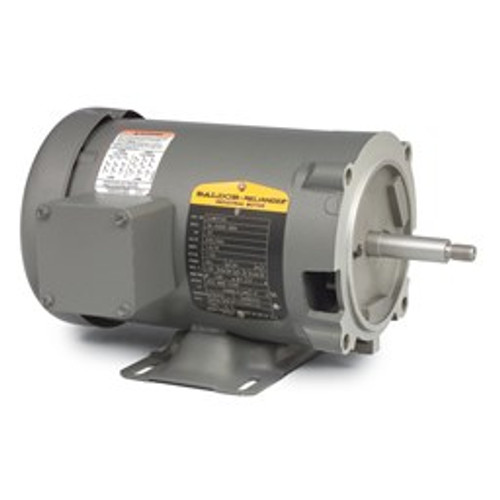

Catalog Number: JL1307A|Enclosure: OPEN|Frame: 56J|Frame Material: Steel|Frequency: 60.00 Hz|Output @ Frequency: .750 HP @ 60 HZ|Phase: 1|Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ|Voltage @ Frequency: 230.0 V @ 60 HZ 115.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: CSA UR|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: No Mounting|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 10.200 A @ 115.0 V 5.100 A @ 230.0 V 6.000 A @ 208.0 V|Design Code: N|Drip Cover: Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 68.0 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 5.1 a|Front Face Code: Drip Cover Mounting|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: B|Inverter Code: Not Inverter|KVA Code: K|Lifting Lugs: No Lifting Lugs|Locked Bearing Indicator: Locked Bearing|Motor Lead Exit: Terminal Panel Or Lead Hole|Motor Lead Termination: Flying Leads|Motor Lead Quantity/Wire Size: 5 @ 18 AWG|Motor Type: 3428L|Mounting Arrangement: F1|Number of Poles: 4|Overall Length: 13.89 IN|Power Factor: 68|Product Family: General Purpose|Pulley End Bearing Type: Ball|Pulley Face Code: C-Face|Pulley Shaft Indicator: Ext Thread|Rodent Screen: None|RoHS Status: ROHS COMPLIANT|Service Factor: 1.25|Shaft Diameter: 0.625 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Fixed Opposite Standard|Shaft Slinger Indicator: No Slinger|Speed: 1725 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: Automatic Thermal Overload|Winding Thermal 1 Location: SB|Winding Thermal 2: None|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 3.1 Ohms A Ph / 1.64 Ohms B Ph|Temp. Rise @ Rated Load: 74� C|Temp. Rise @ S.F. Load: 90� C|Start Configuration: DOL|Break-Down Torque: 5.5 LB-FT|Pull-Up Torque: 4.5 LB-FT|Locked-Rotor Torque: 9.5 LB-FT|Starting Current: 31 A
Warranty
Monarch Bearing Co. offers a 30-day Return Policy on every item we sell. Please see Terms of Sale & Return Policy for more specific details.
