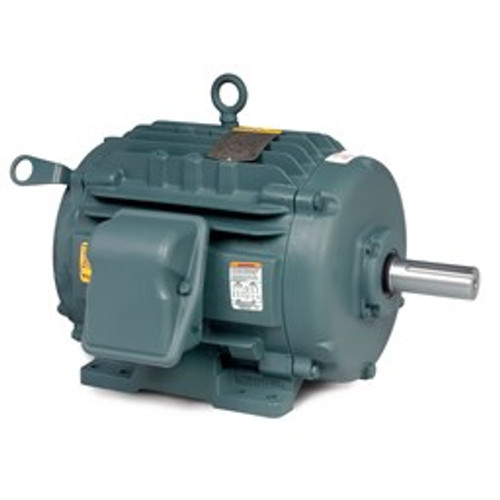

Description
Catalog Number: M1725T|Enclosure: TEFC|Frame: 254T|Frame Material: Iron|Frequency: 60.00 Hz|Output @ Frequency: 3.300 HP @ 60 HZ 7.500 HP @ 60 HZ|Phase: 3|Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ|Voltage @ Frequency: 460.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: UR CSA|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: Rigid|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 10.300 A @ 460.0 V|Design Code: A|Drip Cover: No Drip Cover|Duty Rating: CONT|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 5.7 a|Front Face Code: Standard|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: F|Inverter Code: Not Inverter|IP Rating: NONE|KVA Code: J|Lifting Lugs: Standard Lifting Lugs|Locked Bearing Indicator: Locked Bearing|Motor Lead Exit: Ko Box|Motor Lead Termination: Flying Leads|Motor Lead Quantity/Wire Size: 6 @ 12 AWG|Motor Type: 0928M|Mounting Arrangement: F1|Number of Poles: 4 6|Overall Length: 23.28 IN|Product Family: General Purpose|Pulley End Bearing Type: Ball|Pulley Face Code: Standard|Pulley Shaft Indicator: Standard|Rodent Screen: None|Service Factor: 1.15|Shaft Diameter: 1.625 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: Shaft Slinger|Speed: 1160 rpm 1760 rpm|Speed Code: 2S-2W-VT|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: None|Winding Thermal 2: None|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 2.4 Ohms A Ph / 0 Ohms B Ph|Temp. Rise @ Rated Load: 63� C|Temp. Rise @ S.F. Load: 73� C|Start Configuration: DOL|Break-Down Torque: 81 LB-FT|Pull-Up Torque: 47 LB-FT|Locked-Rotor Torque: 55 LB-FT|Starting Current: 72 A|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 5.91 Ohms A Ph / 0 Ohms B Ph|Temp. Rise @ Rated Load: 54� C|Temp. Rise @ S.F. Load: 60� C|Start Configuration: DOL|Break-Down Torque: 52 LB-FT|Pull-Up Torque: 26 LB-FT|Locked-Rotor Torque: 31 LB-FT|Starting Current: 32 A
