Description

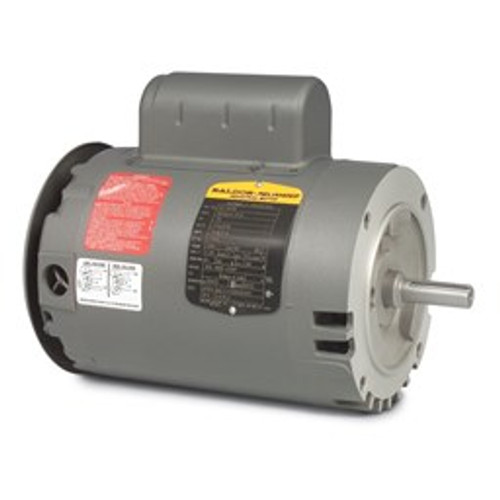

Catalog Number: VEL11309|Enclosure: OPEN|Frame: 56C|Frame Material: Steel|Frequency: 60.00 Hz|Output @ Frequency: 1.000 HP @ 60 HZ|Phase: 1|Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ|Voltage @ Frequency: 115.0 V @ 60 HZ 230.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: C UR US ENERGY|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: No Mounting|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 3.900 A @ 230.0 V 5.500 A @ 208.0 V 7.800 A @ 115.0 V|Design Code: N|Drip Cover: Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 82.0 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 3.9 a|Front Face Code: Drip Cover Mounting|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: B|Inverter Code: Not Inverter|KVA Code: H|Lifting Lugs: No Lifting Lugs|Locked Bearing Indicator: Locked Bearing|Motor Lead Exit: Terminal Panel|Motor Lead Termination: None|Motor Lead Quantity/Wire Size: 4 @ 16 AWG, A PH|Motor Type: 3524LC|Mounting Arrangement: F1|Number of Poles: 2|Overall Length: 13.22 IN|Power Factor: 99|Product Family: General Purpose|Pulley End Bearing Type: Ball|Pulley Face Code: C-Face|Pulley Shaft Indicator: Standard|Rodent Screen: None|RoHS Status: ROHS COMPLIANT|Service Factor: 1.25|Shaft Diameter: 0.625 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: No Slinger|Speed: 3480 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: None|Winding Thermal 2: None
