Description

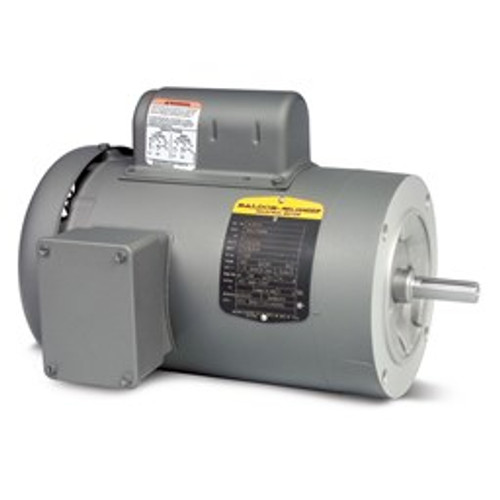

Catalog Number: VL3501-50|Enclosure: TEFC|Frame: 56C|Frame Material: Steel|Frequency: 50.00 Hz|Output @ Frequency: .330 HP @ 50 HZ|Phase: 1|Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ|Voltage @ Frequency: 220.0 V @ 50 HZ 110.0 V @ 50 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: UR WEEE CSA CE|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: No Mounting|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 3.200 A @ 220.0 V 6.400 A @ 110.0 V|Design Code: N|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 59.0 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: NO FEEDBACK|High Voltage Full Load Amps: 3.2 a|Front Face Code: Standard|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: F|Inverter Code: Not Inverter|KVA Code: L|Lifting Lugs: No Lifting Lugs|Locked Bearing Indicator: Locked Bearing|Motor Lead Exit: Ko Box|Motor Lead Termination: Flying Leads|Motor Lead Quantity/Wire Size: 6 @ 18 AWG|Motor Type: 3418L|Mounting Arrangement: F1|Number of Poles: 4|Overall Length: 11.35 IN|Power Factor: 60|Product Family: General Purpose|Pulley End Bearing Type: Ball|Pulley Face Code: C-Face|Pulley Shaft Indicator: Standard|Rodent Screen: None|RoHS Status: ROHS COMPLIANT|Service Factor: 1.35|Shaft Diameter: 0.625 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: No Slinger|Speed: 1425 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: None|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: None|Winding Thermal 2: None|Full Load Torque: 0 LB-FT|No-Load Current: 0 A|Line-Line Res. @ 25� C: 6.14 Ohms A Ph / 0 Ohms B Ph|Temp. Rise @ Rated Load: 63� C|Temp. Rise @ S.F. Load: 85� C|Start Configuration: DOL|Break-Down Torque: 3.4 LB-FT|Pull-Up Torque: 3 LB-FT|Locked-Rotor Torque: 4.1 LB-FT|Starting Current: 14.7 A
