Description

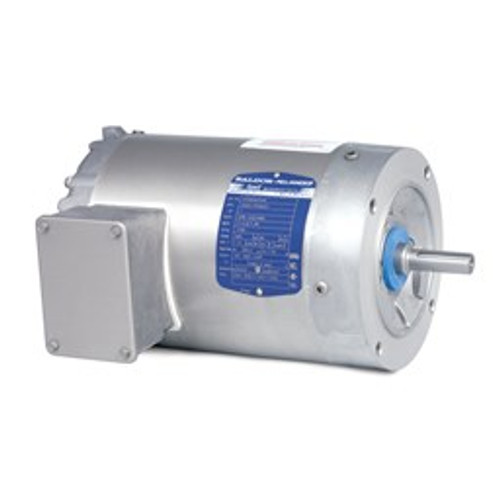

Catalog Number: ZDWNM3554T|Enclosure: TENV|Frame: 145TC|Frame Material: Steel|Frequency: 60.00 Hz|Output @ Frequency: 1.500 HP @ 60 HZ|Phase: 3|Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ|Voltage @ Frequency: 460.0 V @ 60 HZ 230.0 V @ 60 HZ|XP Class and Group: None|XP Division: Not Applicable|Agency Approvals: CSA UR|Ambient Temperature: 40 �C|Auxillary Box: No Auxillary Box|Auxillary Box Lead Termination: None|Base Indicator: Rigid|Bearing Grease Type: Polyrex EM (-20F +300F)|Blower: None|Current @ Voltage: 2.100 A @ 460.0 V 4.200 A @ 230.0 V 4.400 A @ 208.0 V|Design Code: B|Drip Cover: No Drip Cover|Duty Rating: CONT|Efficiency @ 100% Load: 86.5 %|Electrically Isolated Bearing: Not Electrically Isolated|Feedback Device: ENCODER|High Voltage Full Load Amps: 2.1 a|Front Face Code: Encoder/Feedback Device|Front Shaft Indicator: None|Heater Indicator: No Heater|Insulation Class: H|Inverter Code: Inverter Duty|KVA Code: K|Lifting Lugs: No Lifting Lugs|Locked Bearing Indicator: Locked Bearing|Max Speed: 4500 rpm|Motor Lead Exit: Ko Box|Motor Lead Termination: Flying Leads|Motor Lead Quantity/Wire Size: 9 @ 18 AWG|Motor Type: 3534M|Mounting Arrangement: F1|Number of Poles: 4|Overall Length: 15.78 IN|Power Factor: 76|Product Family: Wash Down|Pulley End Bearing Type: Sealed Bearing|Pulley Face Code: C-Face|Pulley Shaft Indicator: Standard|Rodent Screen: None|RoHS Status: ROHS COMPLIANT|Service Factor: 1.00|Shaft Diameter: 0.875 IN|Shaft Extension Location: Pulley End|Shaft Ground Indicator: No Shaft Grounding|Shaft Rotation: Reversible|Shaft Slinger Indicator: Shaft Slinger|Speed: 1755 rpm|Speed Code: Single Speed|Motor Standards: NEMA|Starting Method: Direct on line|Thermal Device - Bearing: None|Thermal Device - Winding: Normally Closed Thermostat|Vibration Sensor Indicator: No Vibration Sensor|Winding Thermal 1: None|Winding Thermal 2: None
